CEILING T-GRID

---

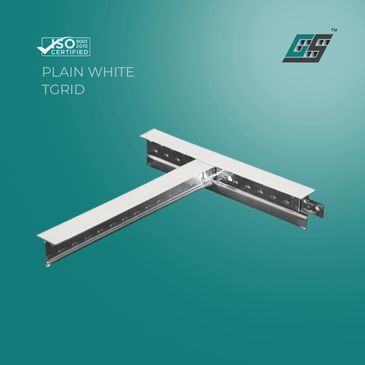

gypsquare T-Grid Ceilings plain white is a premium suspension system designed for modern false ceiling installations. Manufactured from high-quality galvanised  steel, the T24 grid provides strength, stability, and long-lasting performance for gypsum tile, mineral fiber, and metal ceiling tiles, acoustic tiles.

Key Features:

• Material: Galvanized Iron (GI) / Aluminum with powder-coated finish
• Size: 24x32x3000x0.30, 24x38x3600x0.30 mm)
• Finish: Plain White, rust-resistant, scratch-proof coating
• Durability: Strong load-bearing capacity for long life
• Installation: Quick interlocking system for hassle-free fitting
• Applications: Suitable for gypsum ceiling tiles, PVC laminated tiles, mineral fiber boards, and metal ceiling panels

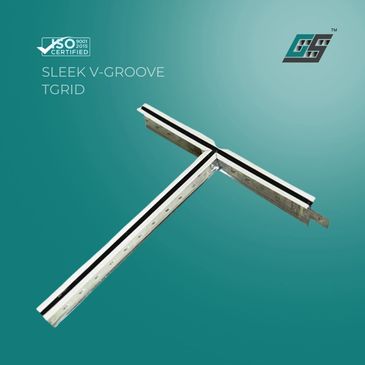

Gypsquare Ceiling T-Grid Groove T15

The Gypsquare T15 Groove Ceiling Grid is designed to give ceilings a sleek and modern finish with a black groove center line that creates a striking shadow effect. With its slim 15mm face width, this grid offers a clean and refined appearance, making it ideal for high-end offices, retail spaces, hotels, and residences.

Specifications:

• Face Width (T-Bar): 15 mm
• Groove Detail: Black groove in center for premium design look
• Main Tee Size: 24 x 32 mm
• Cross Tee Size: 24 x 26 mm
• Length Options:

  • Main Tee: 3600 mm
  • Cross Tee: 1200 mm / 600 mm
  • Wall Angle: 3000 mm (24 x 24 mm or 24 x 19 mm)
• Thickness: 0.30 mm – 0.40 mm (as per requirement)
• Material: High-quality galvanized steel
• Coating: Polyester paint finish with black groove strip
• Color: White (with black groove)
• Installation System: Lay-in tiles, compatible with Gypsquare ceiling tiles

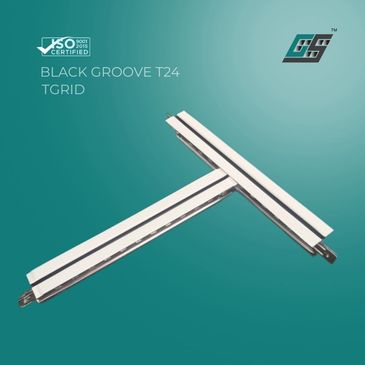

Give your ceilings a modern and sophisticated touch with our T-Grid Black Groove 24mm, also known as Center Black T-Grid. Designed with a sleek black line running through the center, this grid system enhances the visual appeal of suspended ceilings by creating a sharp, elegant contrast. It perfectly complements PVC laminated, mineral fiber, gypsum, and calcium silicate ceiling tiles, making it the ideal choice for both commercial and residential spaces.

Key Features

• Sleek 24mm profile with black groove in the center for a premium look
• High-quality galvanized steel for durability and rust resistance
• Easy installation with interlocking design
• Provides superior stability and alignment for ceiling tiles
• Suitable for offices, showrooms, malls, and residential interiors

Specifications

• Main Tee: 24 x 38 x 3600 mm
• Cross Tee: 24 x 26 x 1200 mm / 24 x 26 x 600 mm
• Wall Angle: 24 x 24 x 3000 mm
• Material: Galvanized steel with polyester coating
• Surface Finish: White with black groove in the center
• Width: 24 mm (Center Black Groove)
• Thickness: 0.3 mm – 0.35 mm (as per requirement)
• Load Capacity: Suitable for standard ceiling tiles (595x595 mm / 603x603 mm)

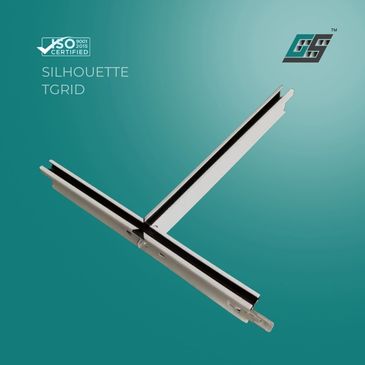

The Silhouette T-Grid System is a premium suspension ceiling solution that adds elegance and depth to modern interiors. With its unique stepped-edge design and contrasting center grooves (available in black or other finishes), it creates a clean, linear shadow effect that enhances the aesthetics of any ceiling space. Designed for high-end offices, malls, airports, hotels, and modern residential interiors, the Silhouette T-Grid offers both style and strength.

Its concealed locking system ensures stability and seamless tile alignment while maintaining a refined, minimalistic appearance. Compatible with a wide range of ceiling tiles including gypsum, mineral fiber, calcium silicate, and PVC laminated tiles.

Key Features

• Sleek silhouette design with groove in the center for an elegant shadow effect
• Available in 15mm & 24mm widths with black or colored groove options
• High-quality galvanized steel with baked polyester coating for long life
• Precise interlocking system for quick and secure installation
• Rust and corrosion resistant for long-lasting performance

Specifications

• Main Tee: 24 x 38 x 3600 mm / 15 x 38 x 3600 mm
• Cross Tee: 24 x 26 x 1200 mm & 600 mm / 15 x 26 x 1200 mm & 600 mm
• Wall Angle: 24 x 24 x 3000 mm or 19 x 19 x 3000 mm
• Material: Galvanized steel with polyester paint finish
• Surface Finish: White with black/colored groove (custom options available)
• Thickness: 0.30 mm – 0.40 mm
• Load Capacity: Compatible with standard ceiling tiles (595x595 mm, 603x603 mm)
• Corrosion Resistance: High, suitable for humid areas

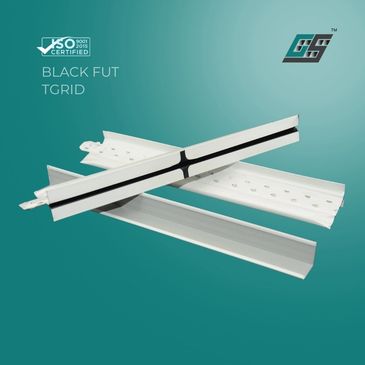

The FUT T-Grid Ceiling System from GYPSQUARE Ceilings is a durable and easy-to-install suspension framework designed for modular ceilings. Engineered with precision, it provides superior load-bearing capacity, seamless alignment, and a clean aesthetic finish for both commercial and residential ceiling projects.

Key Features

• High-strength galvanized steel construction for durability and rust resistance
• Easy snap-in installation for faster ceiling setup
• Smooth surface with powder-coated finish for a premium look
• Excellent load-bearing strength to support gypsum, mineral fiber, PVC laminated, and other ceiling tiles
• Perfect alignment with precision interlocking design
• Long-lasting and maintenance-free solution

Specifications

• Main Tee (FUT): 32 × 24 × 3660 mm
• Cross Tee (FUT): 32 × 24 × 1220 mm & 32 × 24 × 610 mm
• Wall Angle: 24 × 24 × 3000 mm
• Material: High-quality galvanized steel
• Thickness: 0.30 – 0.35 mm (customizable as per project need)
• Finish: Polyester paint / Powder-coated (White / Black / Customized)
• Edge Type: Flush & concealed grid for a sleek ceiling appearance
• Application: Offices, showrooms, hospitals, schools, airports, malls, and residential projects
